Pocket-Sized Powerhouse: New Portable Device Rivals Bulky Lab Machinery in Disease and Environmental Testing
Kumamoto University researchers design a miniature spectrophotometer that slashes equipment size by 99% while maintaining world-class diagnostic accuracyIn a major breakthrough for decentralized healthcare and environmental monitoring, researchers at Kumamoto University have successfully developed a palm-sized, battery-powered spectrophotometer that matches the performance of massive commercial laboratory equipment. Published in Sensing and Bio-Sensing Research, the study reveals a 99% reduction in device volume without sacrificing accuracy, paving the way for instant, on-site testing in hospitals, agricultural fields, and remote waterways.
Traditionally, measuring biomolecules like proteins and glucose requires colorimetric analysis via large, expensive absorption spectrophotometers. These bulky setups rely on high-intensity lasers and complex internal components to eliminate "stray light"—unwanted internal reflections that distort measurements. Because of their size and cost, these precise diagnostics have remained trapped inside specialized research facilities.
To break these boundaries, a research team led by Associate Professor Yuta Nakashima at Kumamoto University engineered a breakthrough "spatial filter" featuring a unique tapered light-guiding structure inspired by the pinholes used in advanced microscopes.
"Our spatial filter selectively absorbs oblique stray light while forcing direct light straight toward the sensor," explains Dr. Nakashima. "This drastically improves the signal-to-noise ratio, allowing a simple LED and color sensor to achieve high-precision calculations."
The pocket-sized device proved its power by quantifying real human serum proteins and tracking immune responses via cell cytokines (TNF-α). When pitted against a standard industry-grade commercial spectrophotometer, statistical tests confirmed no significant difference in accuracy.
Stepping rapidly from lab to market, Kumamoto University has officially licensed this patented technology to Micronix Co., Ltd., which has launched the device commercially under the product name "POTA". Powered by battery or a computer connection, this standalone tool is set to revolutionize smart agriculture, immediate water safety checks, and point-of-care medical testing.

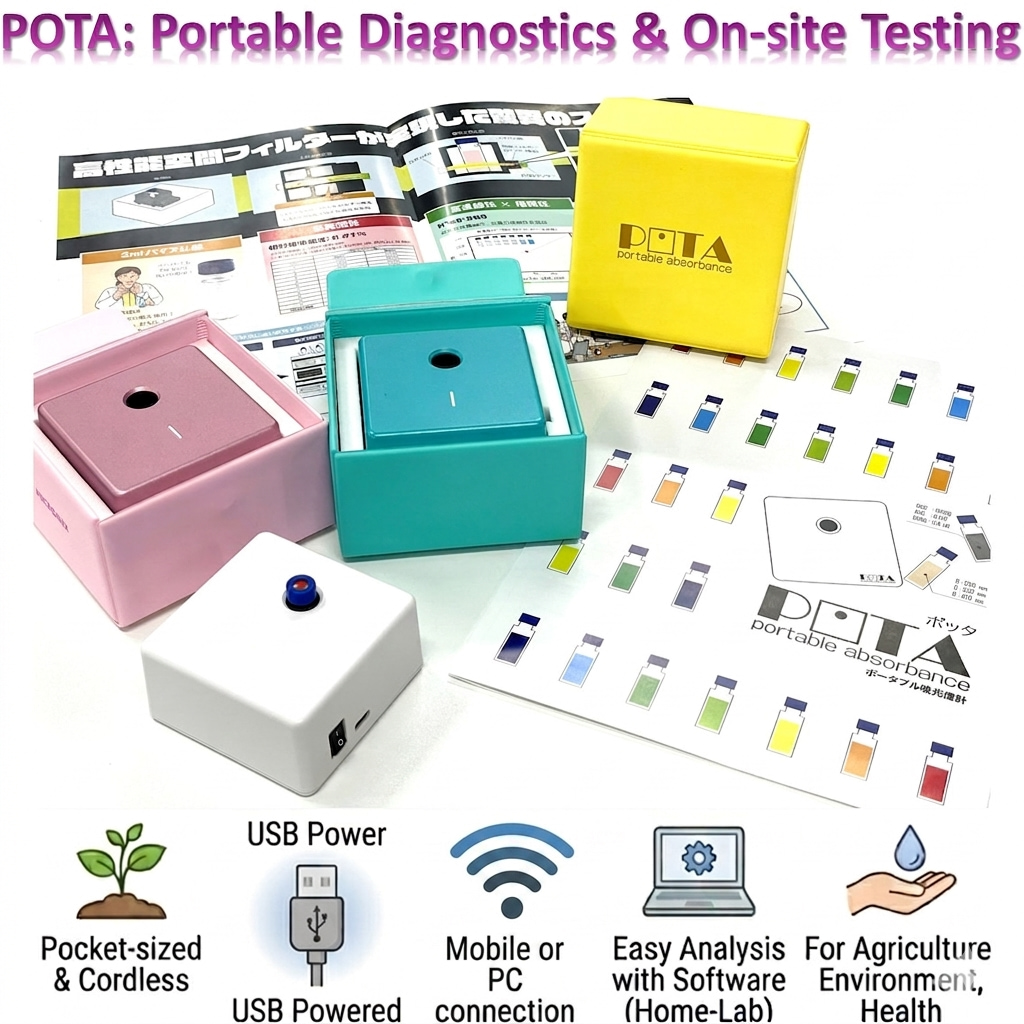

Image Title: Handheld "POTA" Spectrophotometer
Image Caption: Micronix Co., Ltd. has commercially launched "POTA," a pocket-sized, standalone spectrophotometer. Capable of being powered via battery or a direct computer connection, this versatile device is designed to enable on-the-spot testing for smart agriculture, real-time water safety monitoring, and point-of-care medical diagnostics.

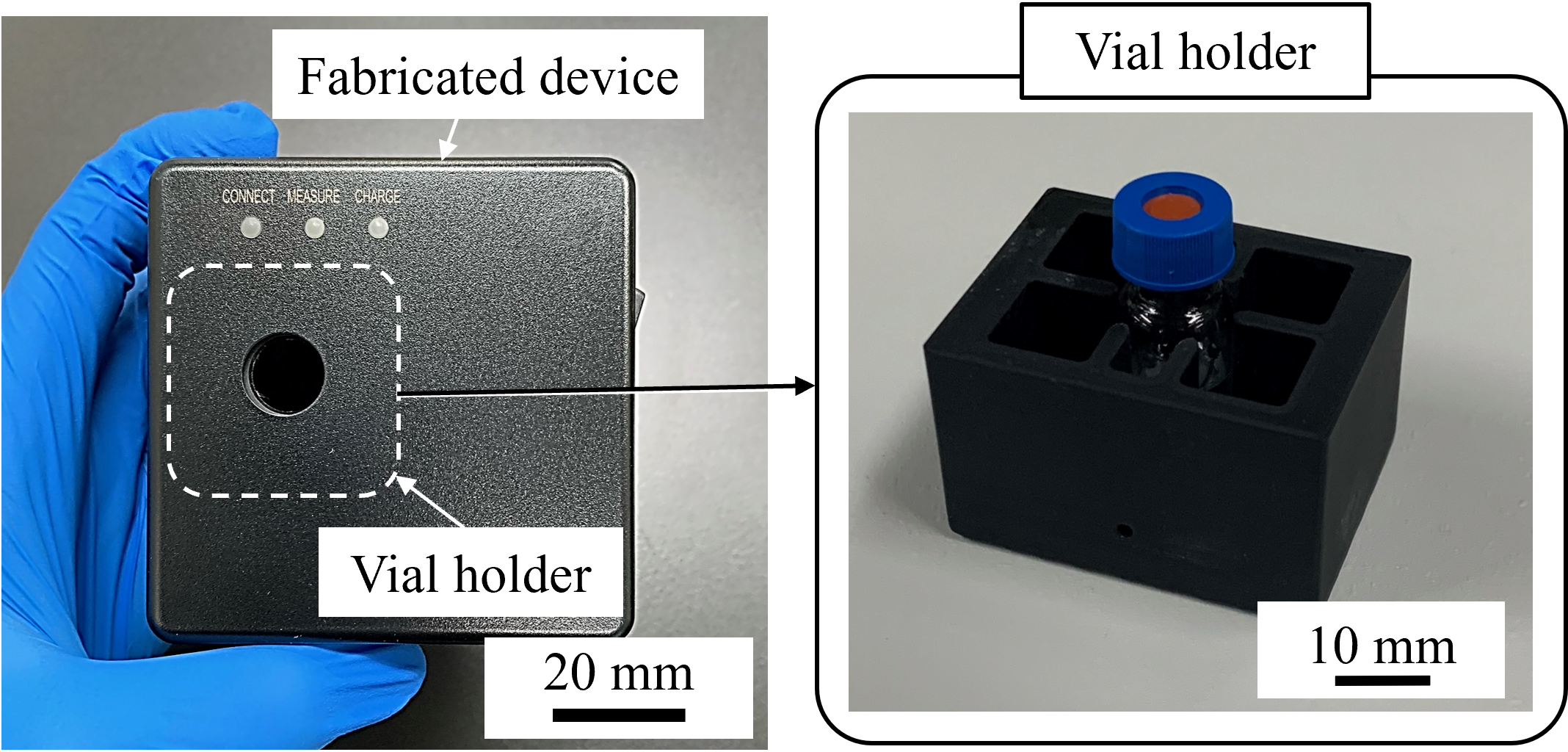

Image Title: Testing a Sample with the POTA Device
Image Caption: This compact, custom-cut device (80x80x40 mm) is designed to analyze liquid samples. It uses a standard 2 mL glass vial as a testing container. While these cheap, easy-to-use vials usually cause light distortion and measurement noise, our device solves this problem using a built-in "spatial filter" that absorbs distracting stray light. Thanks to this smart design, it only needs a tiny drop of liquid—just 500 μL—to get an accurate reading.
Image Caption: This compact, custom-cut device (80x80x40 mm) is designed to analyze liquid samples. It uses a standard 2 mL glass vial as a testing container. While these cheap, easy-to-use vials usually cause light distortion and measurement noise, our device solves this problem using a built-in "spatial filter" that absorbs distracting stray light. Thanks to this smart design, it only needs a tiny drop of liquid—just 500 μL—to get an accurate reading.
Image Title: Associate Professor Yuta Nakashima Demonstrating the "POTA" Device
Image Caption: Associate Professor Yuta Nakashima showcases the pocket-sized "POTA" spectrophotometer. The technology was unveiled to the public during a regular presidential press briefing at Kumamoto University, drawing significant media attention and highlighting the university's leadership in cutting-edge research and industrial innovation.
Image Caption: Associate Professor Yuta Nakashima showcases the pocket-sized "POTA" spectrophotometer. The technology was unveiled to the public during a regular presidential press briefing at Kumamoto University, drawing significant media attention and highlighting the university's leadership in cutting-edge research and industrial innovation.
Reference
| Authors |
Tomoki Tahara, Mami Akaike, Yutaro Arakaki, Kinichi Morita, Yoichi Saito, Yoshitaka Nakanishi, Yuta Nakashima |
| Title of original paper |
Biomolecule analysis using portable absorption spectrophotometer with novel spatial filter |
| Journal | Sensing and Bio-Sensing Research |
| DOI | 10.1016/j.sbsr.2026.100955 |
